+31-
Sleeps 5
-
1 Slides
-
Bunk Over CabRear Twin
-
26ft Long
-
Nightscape, Pebblestone

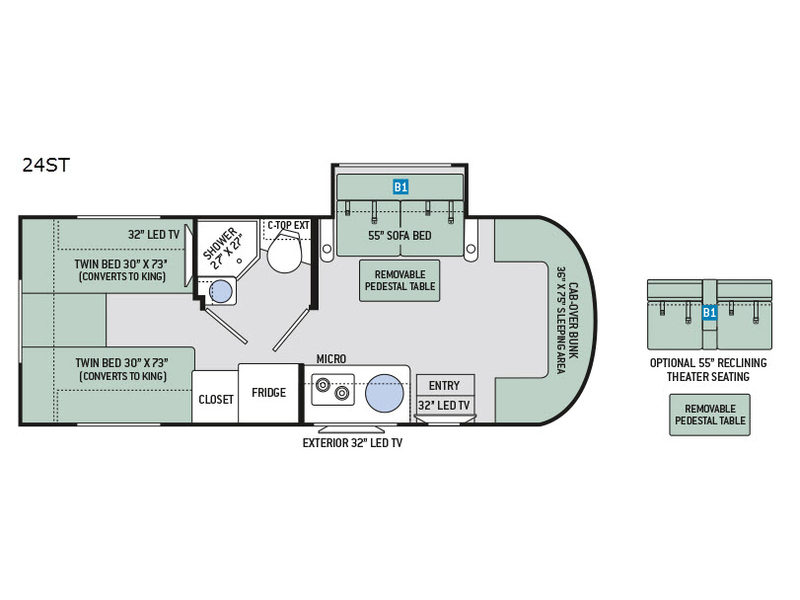

24ST Floorplan
Specifications
| Sleeps | 5 | Slides | 1 |
| Length | 26 ft | Ext Width | 7 ft 6 in |
| Ext Height | 10 ft 10 in | Int Height | 6 ft 8 in |
| Interior Color | Nightscape, Pebblestone | Exterior Color | Long Beach & Lake Geneva Full Body Paint, Rio Red & Golden Nuggen HD-MAX |
| Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
| Fresh Water Capacity | 42 gals | Grey Water Capacity | 24 gals |
| Black Water Capacity | 22 gals | Furnace BTU | 30000 btu |
| Generator | Onan RV QG 3600 LP | Fuel Type | Diesel |
| Miles | 45243 | Engine | BlueTEC 3.0L V6 |
| Chassis | Mercedes Sprinter 3500 | Horsepower | 188 hp |
| Fuel Capacity | 26.4 gals | Wheelbase | 170.3 in |
| Number Of Bunks | 1 | Available Beds | 2 |
| Torque | 325 ft-lb | Convection Cooking | Yes |
| Cooktop Burners | 2 | Shower Size | 27 x 27 |
| Number of Awnings | 1 | LP Tank Capacity | 28.6 |
| Water Heater Capacity | 6 gal | Water Heater Type | Instant Tankless |
| AC BTU | 13500 btu | Basement Storage | 62.9 cu. ft. |
| TV Info | 32" LED TV in LR, BR & Exterior | Awning Info | 11' Powered |
| Gross Combined Weight | 15250 lbs | Shower Type | Angled |
| VIN | WDAPF4CC5G9674969 |
Description
Let this Siesta Sprinter Class C diesel be your new home on wheels. With two twin beds that convert to a king you can choose the most comfortable sleeping arrangements. You will also love the added sleeping space thanks to a cab-over bunk and slide out sofa bed so you can take along a few extra friends.
As you step inside model 24ST you will quickly see how convenient and efficient your travel can be out on the open road.
There is a 32" LED TV mounted above the door which can easily be viewed by the slide out sofa opposite. The slide features a sofa, cup holders on the arms, overhead cabinets, and a pedestal table that is perfect for meal time. You can choose the optional reclining theater seating in place of the sofa if you wish and still have the removable table.
Cooking will be easy while you travel with the two burner range top and microwave oven. There is also a refrigerator, and a single round kitchen sink for easy cleanup.
Moving toward the back of the coach you will find a bath on your right including an angled shower, toilet, countertop extension, and a sink. There is also a storage closet across the hall for your things.
In the very rear of this Siesta Sprinter 24ST you will find twin beds that convert to a full width king bed for more sleeping space, and plenty of overhead and between bed storage. There is also a 32" LED TV to enjoy.
On the exterior there is a 32" LED TV for outdoor entertainment, plus so much more!
Features
- Welded Tubular Aluminum Floor
- Welded Tubular Aluminum Roof & Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls & Floor with Block Foam Insulation
- Premium One-Piece TPO Roof
- One-Piece Fiberglass Front Cap
- One-Piece Fiberglass Rear Cap (24SA, 24SS, 24ST & 24SV)
- One-Piece Fiberglass Rear Bumper (24SR)
- HD-MAX® Exterior with Graphics Package
- Rotocast Storage Compartments
- Power Patio Awning with Integrated LED Lighting
- Slideout Room Topper Awning(s)
- Roof Ladder (24SA, 24SS, 24ST & 24SV)
- Electric Entry Steps
- Frameless Windows
- 5,000-lb. Trailer Hitch
- Full-Body Paint Package with Gel Coated Sidewalls
- Electric Stabilizing System (Standard on 24SS)
AUTOMOTIVE & COCKPIT
- Touchscreen AM/FM Dash Radio with CD/DVD Player, Bluetooth® & Back- up Monitor
- Deluxe Heated/Remote Exterior Mirrors
- Wood Dash Applique
- Swivel, Leatherette Captain’s Chairs
- Cockpit Carpet Mat
- Cruise Control
- Tilt Steering Wheel
- Windshield Privacy Curtain
- Fiberglass Running Boards
- Keyless Entry System
- Stainless Steel Wheel Liners
- Valve Stem Extensions on All Wheels
- Side View Camera System
INTERIOR
- Rubber Tread Entry Steps with Lighted Step Well
- Residential Vinyl Flooring Throughout
- 80” Interior Ceiling Height
- LED Lighting
- Manual Euro-Skylight
- Ceiling Ducted Air Conditioning System
- Cab-Over Bunk Ladder
- Leatherette Dream Dinette® Booth (24SA & 24SS)
- Leatherette Sofa w/Air Bed & Removable Pedestal Table (24SR)
- Leatherette Sofa Bed & Removable Pedestal Table (24ST & 24SV)
- Pressed Laminate Countertops
- High-Gloss Glazed Cabinetry with Raised Panel Cabinet Doors & Nickel Finish Hardware
- Full Extension Metal Ball-Bearing Drawer Guides
- Window Privacy Roller Shades
INTERIOR OPTIONS
- Leatherette Sofa w/Air Bed & Removable Pedestal Table (24SA & 24SS)
- Leatherette Theater Seating with Footrest (24SS & 24ST)
- Single Child Safety Tether in Dinette (24SA & 24SS - N/A with Sofa Option)
- Dual Child Safety Tether in Dinette* (24SA & 24SS - N/A with Sofa Option)
KITCHEN
- Double Door Refrigerator with Stainless Steel Door Inserts
- Protective Cover & Task Lighting Underneath Cabinets
- European 2-Burner Gas Cooktop with Glass Cover
- Convection Microwave Oven Below Cooktop
- Solid Surface Kitchen Countertop & Sink Cover
- Large Stainless Steel Single Bowl Sink & Faucet w/Pull-Down Sprayer
- Waste Basket
BEDROOM & BATHROOM
- Denver Mattress® Full Size Bed (24SA)
- Denver Mattress® Queen Size Bed (24SR & 24SS)
- Two (2) Twin Beds with Upholstered Covers – Converts to King Size Bed (24ST & 24SV)
- Shower with Glass Door (24SA, 24SS, & 24SV)
- Shower with Curtain (24SR & 24ST)
- Foot Flush Porcelain Toilet
- Flip-Up Countertop Extension in Bathroom (24SR, 24ST, & 24SV)
BEDROOM & BATHROOM OPTION
- 12-volt Attic Fan with Cover in Bedroom (24SR, 24SS, 24ST, & 24SV)
ENTERTAINMENT
- 32” LED TV in Living Area
- 32” LED TV in Bedroom (24SR, 24SS, 24ST & 24SV)
- 24” LED TV in Bedroom (24SA)
- Exterior 32” LED TV on Manual Swivel
- Cable TV Ready
- Digital TV Antenna
- Bluetooth® Coach Radio System w/DVD Player, HDMI Ready, App Control & Exterior Speakers
- Power Charging Center for Electronics
ELECTRICAL & PLUMBING
- Onan® RV QG 3600 LP Generator
- 30-amp Shoreline Power Cord
- Automatic Shoreline-to-Generator Transfer Switch
- Battery Disconnect Switch
- 13,500 BTU Low-Profile Air Conditioner
- Whole Coach Water Filtration System
- Instant Tankless Water Heater
- Enclosed & Heated Holding Tanks (24SR & 24ST)
- Outside Shower
- Black Tank Flush System
- Systems Control Center
ELECTRICAL & PLUMBING OPTIONS
- Onan® RV QD 3200 Diesel Generator
- 13,500 BTU Low-Profile Air Conditioner with Heat Pump IPO Standard Air Conditioner
- Second Auxiliary House Battery
- Holding Tanks with Heat Pads (24SA, 24SS & 24SV)
